Concept behind SVM

 Concept behind SVM :

Suppose you are given to plot two label classes on graph. Here a line can separate classes fairly.

Making a bit complex:

Now consider what if we had data as shown in image below?

Clearly,there is no line that can separate the two classes in this X-Y plane. So, we apply transformation and add one more dimension as we call Z- axis. Let's assume value of points on Z- plane,  W = X² + Y². In this case we can manipulate it as distance of point from Z- origin. Now if we plot in Z axis, a clear separation is visible and a line can be drawn.

When transform back this line to original plane, it maps to circular boundary. These transformations are called Kernels.

Making it a little more complex..

What if data plot overlaps? or what in case some of the black points are inside the blue one?

The first one tolerates some outlier points. The second one is trying to achieve 0 tolerance with perfect partition.

But there is a trade off, In real world applications finding perfect class for millions of training data set takes lot of time. As you see in coding. This is called regularization parameter.

Tuning parameters :

• Kernel
• Regularization
• Gamma
• Margin

Kernel:

The learning of the hyper plane in a linear SVM is done by transforming the problem using some linear algebra. This is where the kernel plays role. For linear kernel the equation for prediction for a new input using the dot product between the input (X) and each each support vector (Xi) is calculated as

f(X) = B(0) + sum ( ai* (X, Xi))

where, Bo and ai are coefficients, estimated from the training data by the learning algorithm.

The polynomial kernel can be written as K(X, Xi) = 1+sum(X, Xi) ^ d and exponential as K(X, Xi) = exp(-gamma * sum(X- Xi²)). Polynomial and exponential kernels calculates separation line in higher dimension. This is called kernel trick.

Regularization :

The regularization parameter ( C ) tells the SVM optimization how much you want to avoid misclassify each training example.

For large values of C, the optimization will choose a smaller margin hyper plane if that hyper plane does a better job of getting all the training points classified correctly. Conversely, a very small value of C will cause the optimizer to look for a larger-margin separating hyper plane, even if that misclassifies more points.

Gamma :

The gamma parameter defines how far the influence of single training example reaches, with low values meaning 'far' and high values meaning 'close'.

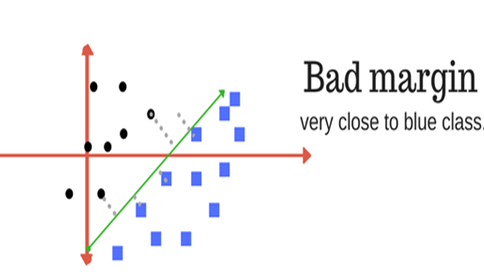

Margin :

A margin is a separation line to the closest class points. A good margin is one where this separation is larger for both the classes and a good margin allows the points to be in their respective classes without crossing to other class.
